SQL Filtering

SQL Filtering

Every tool in the Traffic Analytics MCP Server requires a sql_queries parameter. This page explains how it works and how to write effective queries. For the motivation behind this approach, see What Makes This Different.

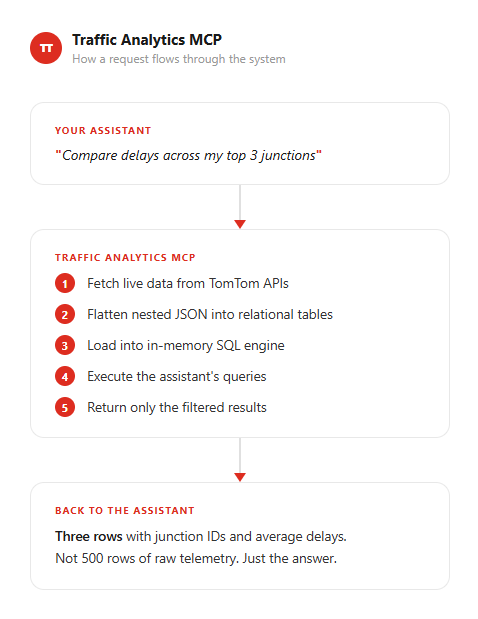

How It Works

1. Your AI assistant calls a tool with parameters and one or more SQL queries
2. The server fetches data from TomTom APIs
3. Nested JSON is flattened into relational tables (one table per data type)
4. SQL queries run against those tables in an isolated, in-memory DuckDB instance
5. Only the query results are returned to the assistant

Each request gets its own database instance. Queries are read-only and fully isolated.

The sql_queries Parameter

Every tool requires sql_queries as a JSON object. Each key is a label, and each value is a SQL query string:

1{
2  "sql_queries": {
3    "top_delays": "SELECT junction_id, approach_id, delay_sec FROM approaches ORDER BY delay_sec DESC LIMIT 5",
4    "summary": "SELECT COUNT(*) as total_approaches, ROUND(AVG(delay_sec), 2) as avg_delay FROM approaches"
5  }
6}

Multiple named queries let the assistant extract different views of the same data in a single tool call without calling the API twice. Results are returned keyed by the query name:

1{
2  "aggregated_data": {
3    "top_delays": [
4      {"junction_id": "abc-123", "approach_id": 1, "delay_sec": 142},
5      {"junction_id": "abc-123", "approach_id": 3, "delay_sec": 98}
6    ],
7    "summary": [
8      {"total_approaches": 12, "avg_delay": 45.33}
9    ]
10  }
11}

SQL Dialect

The server uses DuckDB, which is PostgreSQL-compatible. Key functions you will use:

Tables Per Tool

Quick reference of which tables are available for each tool. See Available Tools for full column details.

* Available with specific parameter options (full view or includeGeometry).

Common SQL Patterns

Filtering

SELECT junction_id, name FROM junctions WHERE status = 'ACTIVE'
SELECT * FROM incidents WHERE iconCategory = 'Accident' AND delay > 300

Aggregation

1SELECT junction_id, ROUND(AVG(delay_sec), 2) as avg_delay
2FROM approaches
3GROUP BY junction_id
4ORDER BY avg_delay DESC

Top-N ranking

1SELECT approach_id, delay_sec, queue_length_meters
2FROM approaches
3ORDER BY delay_sec DESC
4LIMIT 10

Date and time grouping

1SELECT date_part('hour', time::TIMESTAMP) as hour,
2       ROUND(AVG(delay_sec), 2) as avg_delay
3FROM approaches
4GROUP BY hour
5ORDER BY hour

JOINs across tables

1SELECT j.name, j.country_code, a.road_name, a.direction
2FROM junctions j
3JOIN approaches a ON j.junction_id = a.junction_id
4WHERE a.road_name ILIKE '%highway%'

Calculated columns

1SELECT route_name, delay_time, travel_time,
2       ROUND(delay_time * 100.0 / NULLIF(travel_time, 0), 1) as delay_percent
3FROM routes
4WHERE delay_time > 0
5ORDER BY delay_percent DESC

Multi-Entity Comparison

Several tools accept multiple IDs or bounding boxes in a single request:

• Junction tools: up to 20 junction IDs
• Route tools: up to 20 route IDs
• Traffic incidents: up to 10 named bounding boxes

When multiple entities are queried, their data is merged into the same tables with an identifier column (junction_id, route_id, or area_name). This enables cross-entity comparisons with standard SQL:

1-- Compare average delay across 5 junctions
2SELECT junction_id, ROUND(AVG(delay_sec), 2) as avg_delay
3FROM approaches
4GROUP BY junction_id
5ORDER BY avg_delay DESC
6
7-- Compare incident counts across 3 city areas
8SELECT area_name,
9       COUNT(*) as total_incidents,
10       SUM(CASE WHEN iconCategory = 'Accident' THEN 1 ELSE 0 END) as accidents
11FROM incidents
12GROUP BY area_name

Next Steps

• Available Tools: Full parameter and column reference for every tool
• Use Cases: See SQL filtering in action with real prompts
